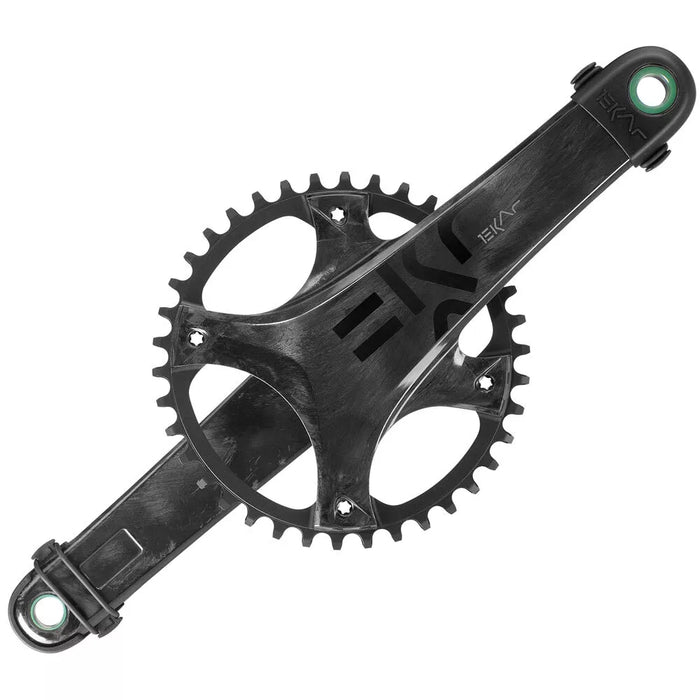

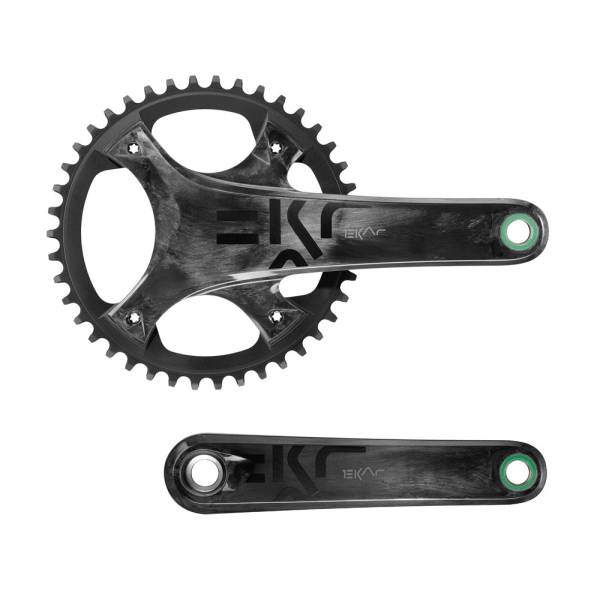

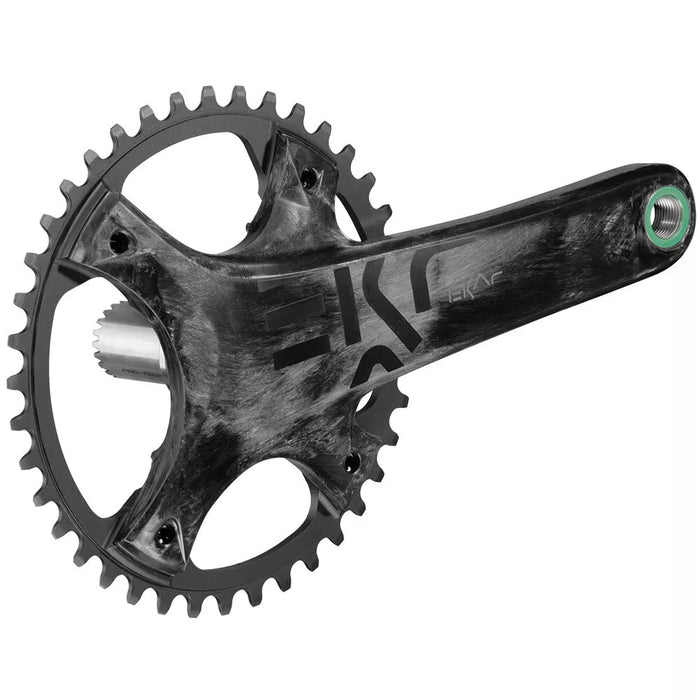

Campagnolo Ekar 13 Speed Chainset Carbon Gravel Bike Crankset
Details:
• UD carbon crankset for the 1 x 13-speed Campagnolo Ekar™ Gravel groupset
• Robust, efficient and self-aligning ProTech™ axle halves with Hirth serration made of AISI 630 steel
• Easy access to the bearings of the crankset (no need to remove the bearing cups from the frame)
• 4 chainring options - Adventure (38 teeth); Pure Gravel (40 teeth), Fast Gravel (42 teeth), Gravel Race (44 teeth)
• Optimised tooth design for efficient power transmission and high safety against chain drops
• Easily replaceable aluminium chainrings (no need to remove the crankset)
Technical details:
• Intended use: Gravel, Adventure, Bikepacking
• Model: Ekar™
• Material crank arms: UD carbon
• Material chainring: Aluminium 7075
• Gears: 1x13-speed
• Axle: ProTech™
• For a shell width of: 68 / 70 mm
• Bolt circle: 123 mm (asymmetric)
• Chainline: 45.5 mm
• Q factor: 145.5 mm
• Weight: approx. 615 g (172.5 mm / 38 teeth)
Available in gear ratios:
• 40 teeth (Pure Gravel)
• 42 teeth (Fast Gravel)
• 44 teeth (Gravel Race)
Please indicate your choice.
Available with crank arm length:
• 165 mm
• 170 mm
• 175 mm
Please indicate your choice.
Recommended bottom bracket:
• Campagnolo Ekar™ ProTech™ bearing cups BSA / Ital. (prod. code: 2314912)
• Campagnolo Ekar™ ProTech™ bearing cups Press-Fit BB30 (prod. code: 2314854)
• Campagnolo Ekar™ ProTech™ bearing cups Press-Fit BB86 (prod. code: 2314859)
• Campagnolo Ekar™ ProTech™ bearing cups Press-Fit 30 (prod. code: 2314910)
• Campagnolo Ekar™ ProTech™ bearing cups Press-Fit BB386 (prod. code: 2314911)
Recommended chain:
• Campagnolo Ekar™ C13 bicycle chain 13-speed, incl. chain rivet (prod. code: 2314830)
• Campagnolo Ekar™ C13 bicycle chain 13-speed, incl. C-Link™ chain lock (prod. code: 2314832)
In the box:
• 1 Campagnolo Ekar™ 1 x 13-speed crankset
WITHOUT bearing cups!
Other Campagnolo Ekar™ components:
• Campagnolo Ekar™ Ergopower shift brake lever 1 x 13-speed set (left & right) (prod. code: 2314766)
• Campagnolo Ekar™ Ergopower shift brake lever 13-speed right (prod. code: 2314762)
• Campagnolo Ekar™ Ergopower brake lever 1-speed left (prod. code: 2314764)
• Campagnolo Ekar™ rear derailleur 13-speed (prod. code: 2314757)
• Campagnolo Ekar™ 13-speed cassette (prod. code: 2314825)
