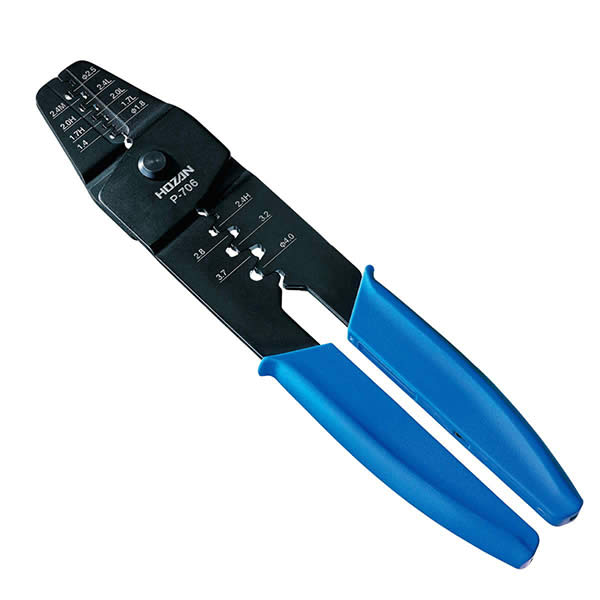

Hozan P-706 crimping tool

Hozan P-706 crimping tool

by Hozan
Save 23% Save 23%
£65.00
£65.00 - £65.00
£65.00
£50.00
£50.00 - £50.00
£50.00

P-706
CRIMPING TOOL

  • RoHS
  • grip

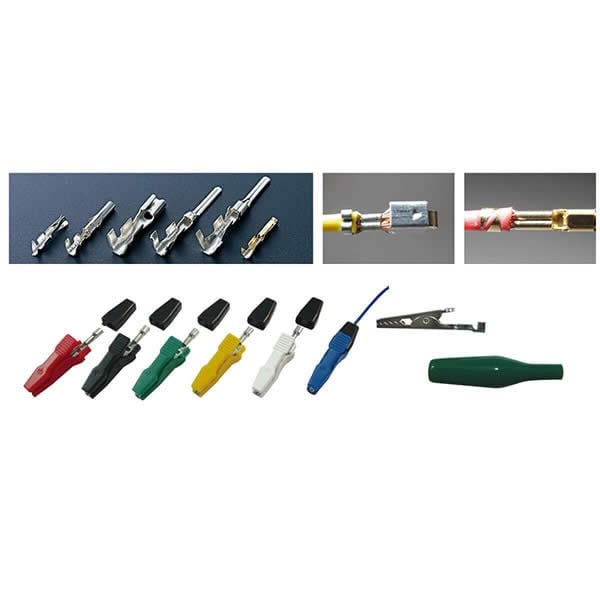

For open barrel terminals / contacts

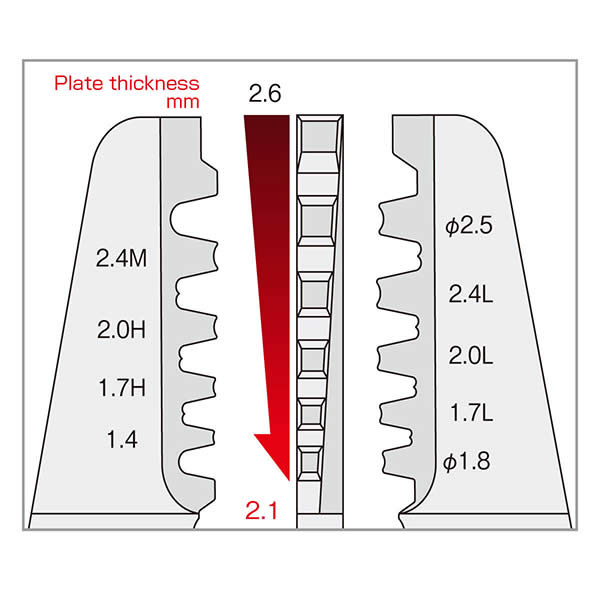

●Ideal for small contact pin crimping.（Die area has thin steps.）

Wire sizes Weight
g
AWG#28 to #14 200
  Nominal sizes Die width
mm		 Crimp height
mm		 Compatible wire sizes (reference) Insulation OD
(reference)
mmφ
AWG# mm2
For conductor 1.4 1.4 0.7 28 to 24 0.08 to 0.2 0.7 to 1.2
1.7L 1.7 28 to 22 0.08 to 0.3 0.9 to 1.5
1.7H 1.1 24 to 18 0.2 to 0.8
2.0L 2.0 0.9 28 to 18 0.08 to 0.8 1.1 to 1.8
2.0H 1.3 24 to 18 0.2 to 0.8
2.4L 2.4 1.2 20 to 16 0.5 to 1.25 1.3 to 2.2
2.4M 1.5 16 to 14 1.25 to 2.0
  Nominal sizes Die width
mm		 Crimp height
mm		 Insulation OD (reference)
mmφ
For insulation 2.4H 2.4 2.4 1.3 to 2.2
2.8 2.8 2.8 1.6 to 2.6
3.2 3.2 3.2 1.8 to 3.0
3.7 3.7 3.7 2.1 to 3.5
For insulation
(for round crimps)		 φ1.8 1.8 1.4 1.2 to 1.8
φ2.5 2.5 2.1 1.8 to 2.5
φ4.0 4.0 3.5 2.3 to 3.8
WarningWarning
●The handle cover is not insulated. Do not use where electrical currents exist.
